Hand Crank Generator
All products are hand made to order. Please allow 8-10 weeks to build.

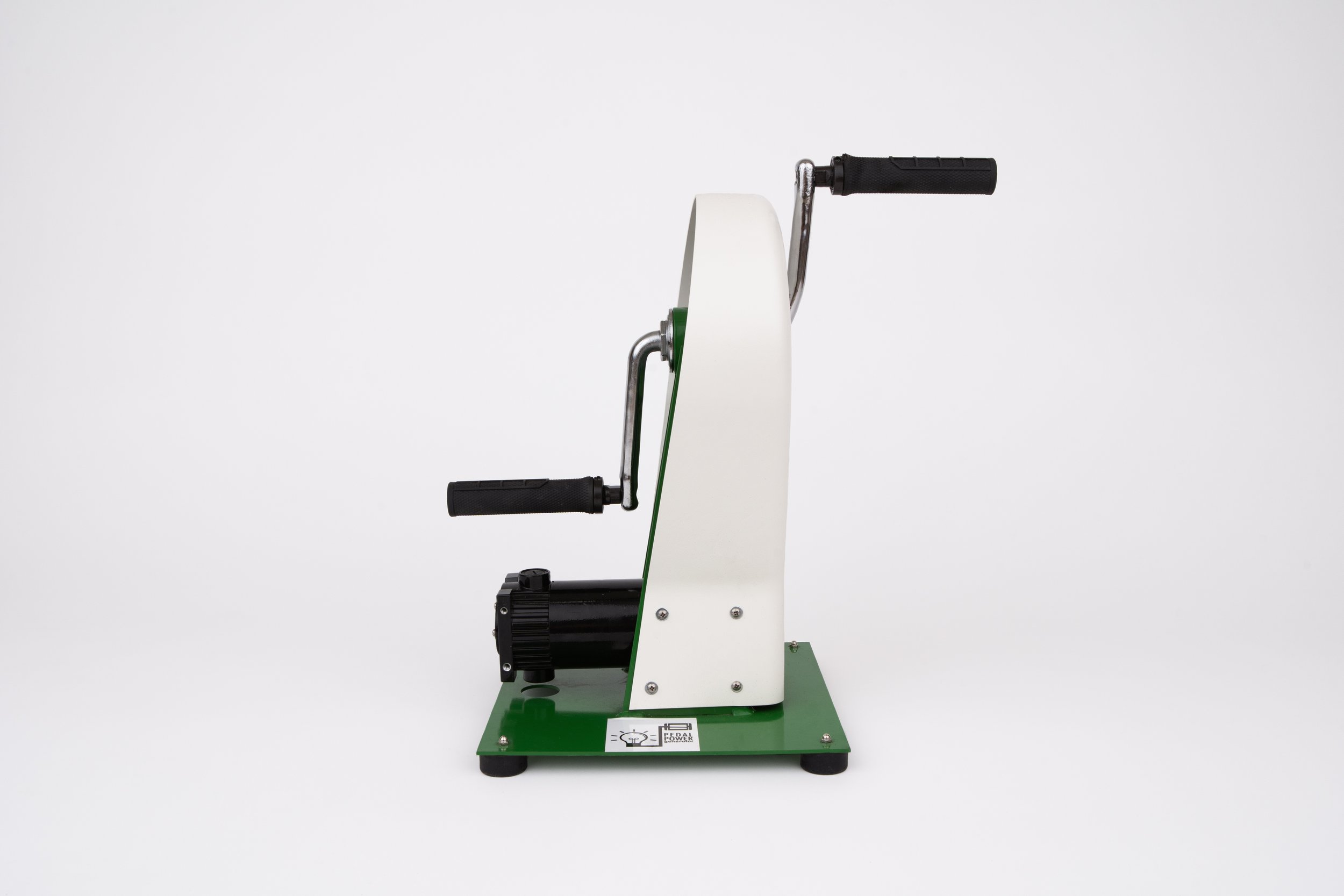

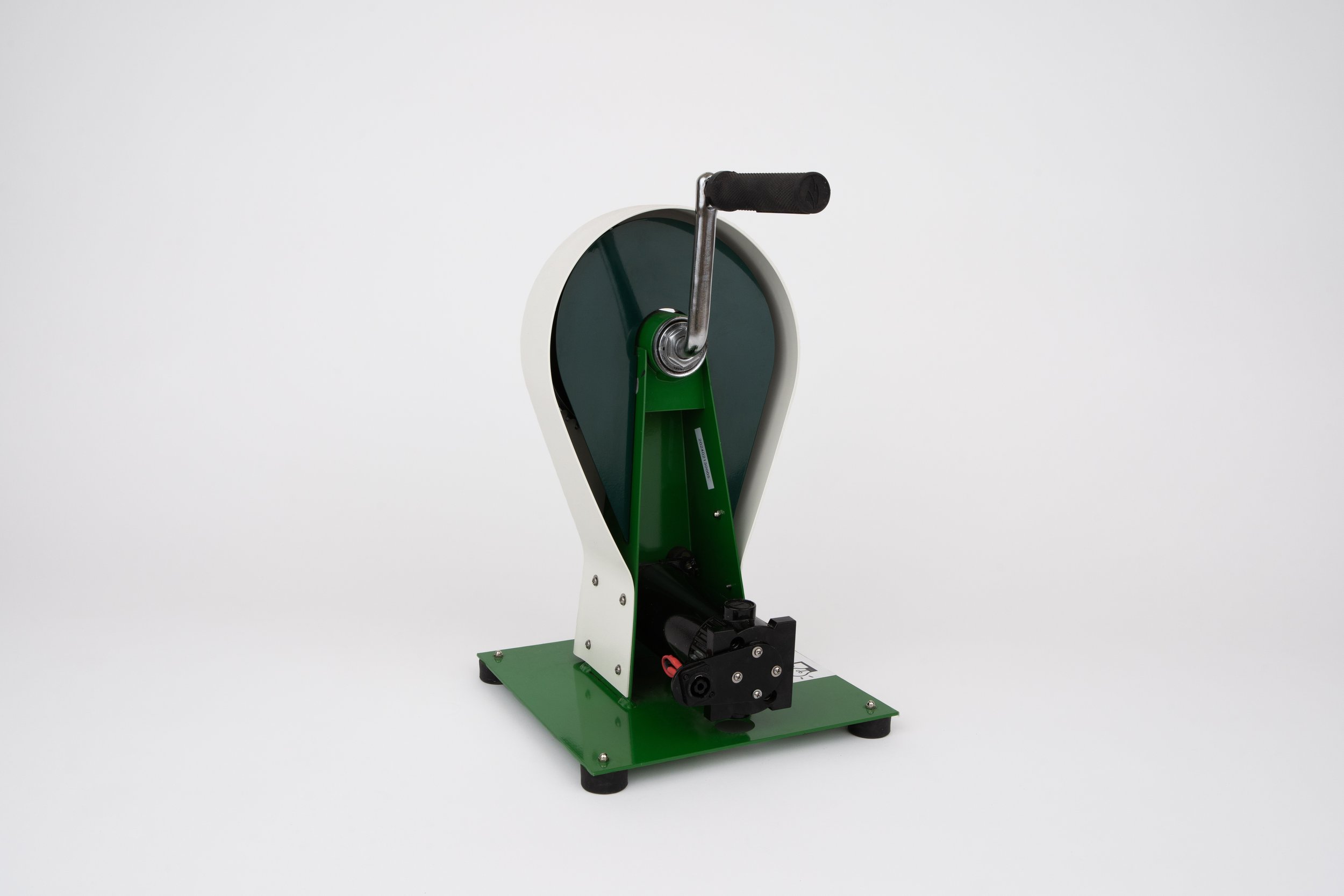

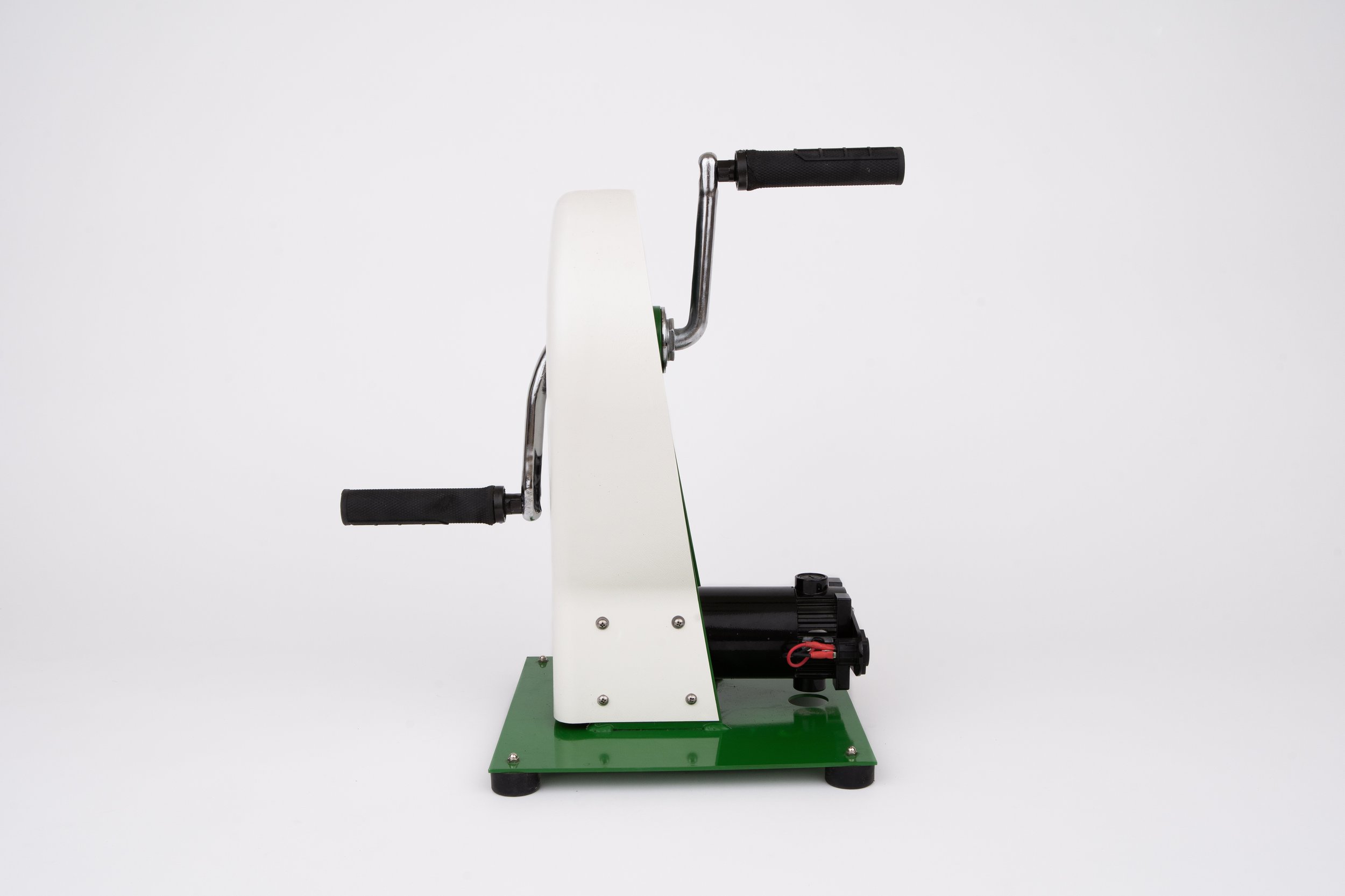

This industrial strength heavy duty generator provides portable power on demand. There are two ways to use this generator. With the hands and with the feet. If feet are used then the stand needs to be screwed into the floor or a piece of plywood. This product can be shipped to any location in the world.
This version of the generator has a specially designed finger protection shroud cover that keep fingers from being caught in the chain and the sprocket.
This permanent magnet DC generator will allow a person to charge a 12V battery or a portable 12V battery power station. This can be done by adding a cigarette lighter plug to the end of the power cord that is provided and plugging it into the battery power station.
Industrial heavy duty bicycle chain, sprocket, crank arms, and PM DC Generator
Manufactured for over 20 years used by customers all over the world
Engineered for harsh conditions such as use in a hands on children's science museum
Voltage output 0 to 50 Volts DC, Current rating: 3 Amps continuous and 5 Amps Peak current, 75 Watts Max
This DC generator operated by an adult has the ability to supply 3 Amps for long periods of time. If a 12V battery has a rating of “10 Amp Hours” then one can assume that the time to charge that battery would around 3 hours. This is derived by taking the Amp hour rating and dividing it by the number amps supplied by the generator which is 10 / 3 = ~ 3 Hours
In order for this hand crank generator to be used with a light bulb display a Voltage regulator must be installed to keep the Voltage at a stable level and fed into an AC 110V inverter.
